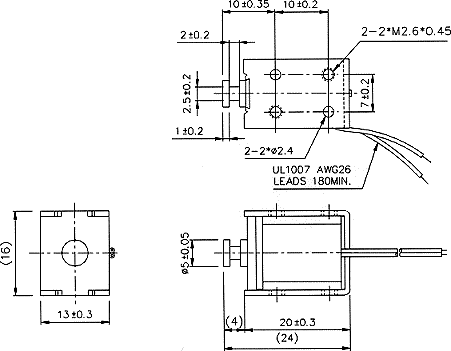

Open Frame Solenoid RG-O-0520L

Enlargement

Duty cycle(%)= X 100%			Continuous(100%)	Or less(50%)	Or less(25%)	Or less(10%)
MAX. "on" time in seconds				55	19	3
Watts at 20^°C			1.6	3.2	6.4	16.0
Ampere-turns at 20^°C			300	424	600	948
Type no.	Resistance (20^°C)?0%	No. turns	Volts DC
RG-O-0520L06AA	23	1150	6	8.5	12	19
RG-O-0520L12AA	90	2290	12	17	24	68
RG-O-0520L24AA	360	4500	24	34	48	76
RG-O-0520L48AA	1440	8600	48	68	96	152
