Open Frame Solenoid
    Enlargement

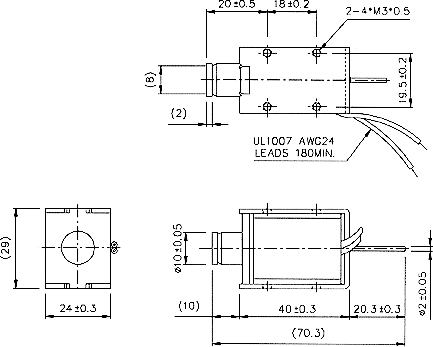

    Product Name : Open Frame Solenoid
    Product No : RG-O-1040S
    Inquiry
    Product Introduction



    Plunger Weight:22g

    Total Weight: 122g

    COIL DATA

    Duty cycle(%)= X 100%Continuous(100%)Or less(50%)Or less(25%)Or less(10%)
    MAX. "on" time in seconds 100 36 7
    Watts at 20°C 4.2 8.4 16.8 42

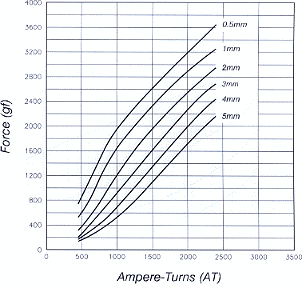

    Ampere-turns at 20°C 655 925 1310 2075
    Type no.Resistance (20°C)?0%No. turnsVolts DC
    RG-O-1040S06AA 8.6 930 6 8.5 12 19
    RG-O-1040S12AA 34 1900 12 17 24 38
    RG-O-1040S24AA 137 3690 24 34 48 76
    RG-O-1040S48AA 548 7590 48 68 96 152
