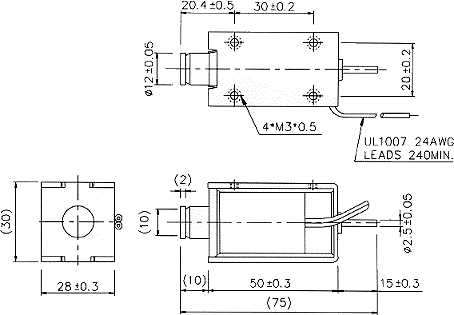

Open Frame Solenoid
Product Introduction
▪ Plunger Weight:41g
▪ Total Weight: 208g
▪ COIL DATA
Duty cycle(%)= X 100% | Continuous(100%) | Or less(50%) | Or less(25%) | Or less(10%) | ||
---|---|---|---|---|---|---|
MAX. "on" time in seconds | 140 | 50 | 9 | |||
Watts at 20°C | 5.5 | 11 | 22 | 55 | ||
Ampere-turns at 20°C | 854 | 1210 | 1708 | 2704 | ||
Type no. | Resistance (20°C)?0% | No. turns | Volts DC | |||
RG-O-1250S06AA | 6.5 | 925 | 6 | 8.5 | 12 | 19 |
RG-O-1250S12AA | 26.2 | 1865 | 12 | 17 | 24 | 38 |
RG-O-1250S24AA | 104.5 | 3736 | 24 | 34 | 48 | 76 |
RG-O-1250S48AA | 419 | 7455 | 48 | 68 | 96 | 152 |
