    Product Name : Open Frame Solenoid
    Product No : RG-O-1253S
    Inquiry
    Product Introduction



    ▪ Plunger Weight:39g

    ▪ Total Weight: 205g

    ▪ COIL DATA

    Duty cycle(%)= X 100%Continuous(100%)Or less(50%)Or less(25%)Or less(10%)
    MAX. "on" time in seconds 140 50 9
    Watts at 20°C 6 12 24 60

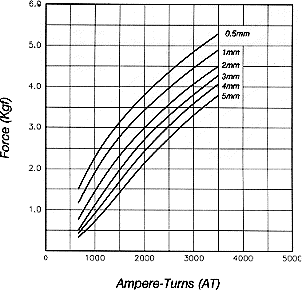

    Ampere-turns at 20°C 937 1325 1875 2964
    Type no.Resistance (20°C)?0%No. turnsVolts DC
    RG-O-1253S06AA 6 910 6 8.5 12 19
    RG-O-1253S12AA 24 1800 12 17 24 38
    RG-O-1253S24AA 96 3748 24 34 48 76
    RG-O-1253S48AA 384 7090 48 68 96 152
