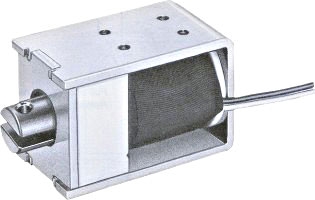

    Product Name : Permanent Magnet Solenoid
    Product No : RG-K-1253L
    Inquiry
    Product Introduction



    Plunger Weight:43g

    Total Weight: 211g

    COIL DATA

    Release Voltage: Rated Voltage of 12 Watts ¡Ó 10%(Reference)

    Duty cycle(%)= X 100%Or less(33%)Or less(20%)Or less(10%)Or less(7%)
    MAX. "on" time in seconds 400 90 35 20
    Watts at 20°C 10 20 40 60

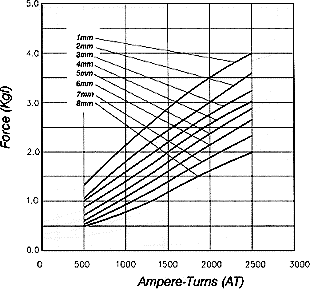

    Ampere-turns at 20°C 950 1341 1898 2327
    Type no.Resistance (20°C)?0%No. turnsVolts DC
    RG-K-1253L5.4AA 3.6 565 6 8 12 15
    RG-K-1253L10.7AA 14.4 1130 12 17 24 29
    RG-K-1253L21.5AA 57.6 2310 24 34 48 59
    RG-K-1253L42.9AA 230 4500 48 68 96 117
