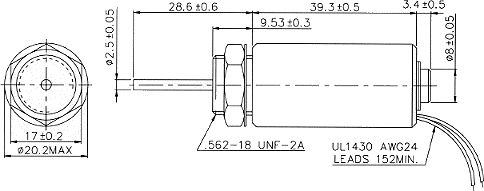

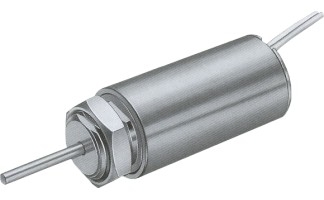

Tubular Solenoid
Product Introduction
▪ Plunger Weight:14g
▪ Total Weight: 81g
▪ COIL DATA
Heat Sink: 80 x 80 x 3mm(alumimum)
Duty cycle(%)= X 100% | Continuous (100%) | Or less(50%) | Or less(25%) | Or less(10%) | ||
---|---|---|---|---|---|---|
MAX. "on" time in seconds | 230 | 25 | 6 | |||
Watts at 20°C | 7 | 14 | 28 | 70 | ||
Ampere-turns at 20°C | 855 | 1200 | 1700 | 2700 | ||
Type no. | Resistance (20°C) ¡Ó10% | No. turns | Volts DC | |||
RG-T-1939S06AA | 5.14 | 733 | 6 | 8.5 | 12 | 19 |
RG-T-1939S12AA | 20.6 | 1470 | 12 | 17 | 24 | 38 |
RG-T-1939S24AA | 82.3 | 2930 | 24 | 34 | 48 | 76 |
RG-T-1939S48AA | 329 | 5800 | 48 | 68 | 96 | 152 |
