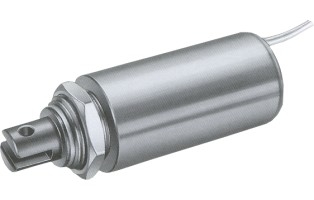

Tubular Solenoid
Product Introduction
▪ Plunger Weight:43g
▪ Total Weight: 178g
▪ COIL DATA
Heat Sink: 100 x 100 x 3mm(alumimum)
Duty cycle(%)= X 100% | Continuous (100%) | Or less(50%) | Or less(25%) | Or less(10%) | ||
---|---|---|---|---|---|---|
MAX. "on" time in seconds | 360 | 32 | 8 | |||
Watts at 20°C | 10 | 20 | 40 | 100 | ||
Ampere-turns at 20°C | 1090 | 1541 | 2180 | 3447 | ||
Type no. | Resistance (20°C) ¡Ó10% | No. turns | Volts DC | |||
RG-T-2551L06AA | 3.6 | 654 | 6 | 8.5 | 12 | 19 |
RG-T-2551L12AA | 14.4 | 1309 | 12 | 17 | 24 | 38 |
RG-T-2551L24AA | 57.6 | 2614 | 24 | 34 | 48 | 76 |
RG-T-2551L48AA | 230.4 | 5240 | 48 | 68 | 96 | 152 |
